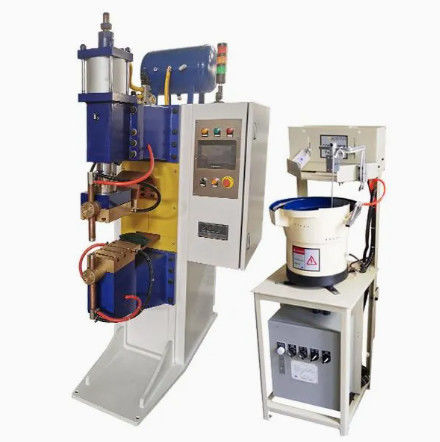

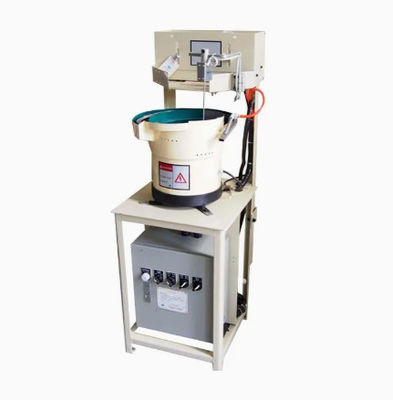

50KVA rated power screw projection welding machine with nut conveyor

50KVA rated power screw projection welding machine with nut conveyor
50KVA rated power screw projection welding machine with nut conveyor
50KVA rated power screw projection welding machine with nut conveyor 50KVA rated power screw projection welding machine with nut conveyor 50KVA rated power screw projection welding machine with nut conveyor

大画像 :  50KVA rated power screw projection welding machine with nut conveyor

商品の詳細:
起源の場所: 中国
ブランド名: Trintfar
証明: CE
お支払配送条件:
最小注文数量: 1
価格: 4000~8000
パッケージの詳細: 木製ブラケット/木製のケース
受渡し時間: 60〜90
支払条件: L/C、D/A、D/P、T/T
連絡先

50KVA rated power screw projection welding machine with nut conveyor

説明
電極ストローク: 50～150mm 主要なセールスポイント: 高い安全性レベル
定格電力: 50KVA 保証: 1年
現在: 50A 応用: 金属溶接
溶接様式: 抵抗溶接 制御システム: PLC

Product Description


50KVA rated power screw projection welding machine with nut conveyor 0
Product Description

50KVA rated power screw projection welding machine with nut conveyor 150KVA rated power screw projection welding machine with nut conveyor 2

Features:
  • The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure of wire.
  • More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
  • Faster to set up current, the speed is 20folds quicker than traditional technic
  • Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
  • Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
  • Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized steel sheet.etc.
Item
Model		 MD-10T MD-20 MD-25 MD-40 MD-60 MD-80 MD-120
Maximum short current
KA
10
20
25
40
60
80
120
Rated duty cycle
%
50
50
50
50
50
50
50
Secondary
voltage
V
≈9.8
≈9.8
≈9.8
≈11.6
≈13.6
≈13.6
≈13.6
Rated power
KVA
≤20
≤50
≤70
≤120
≤160
≤240
≤300
Electrode pressure
N
1200
4700
4700
7300		 12000/18000 12000/18000
18000
Electrode stroke
mm
50
80
80
80
100
100
100
Cooling water
L/min
20
24
24
30
50
50
60

50KVA rated power screw projection welding machine with nut conveyor 350KVA rated power screw projection welding machine with nut conveyor 450KVA rated power screw projection welding machine with nut conveyor 550KVA rated power screw projection welding machine with nut conveyor 650KVA rated power screw projection welding machine with nut conveyor 750KVA rated power screw projection welding machine with nut conveyor 850KVA rated power screw projection welding machine with nut conveyor 9Q Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.


Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
