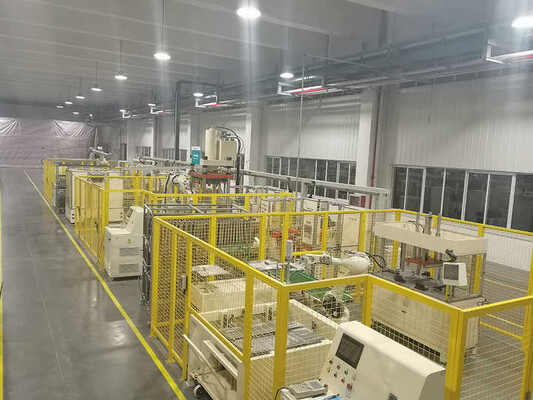

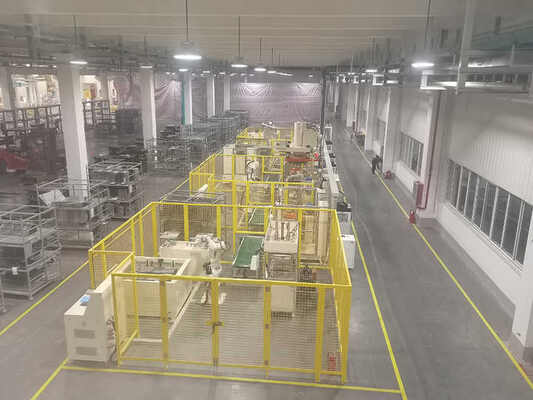

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process.

すべての製品

スポット溶接機械

(49)

エネルギー貯蔵の溶接機

(15)

カスタマイズされた溶接機

(52)

トランスフォーマー・ラジエーター・フィン 生産ライン

(14)

シーム溶接機械

(45)

スタッド溶接機

(20)

スチール ドラムの溶接の生産ライン

(36)

プロジェクション溶接機械

(18)

バット溶接機

(40)

繊維のレーザ溶接機械

(31)

拡散の溶接機

(6)

金網溶接機

(10)

ロボットアーム

(16)

他の溶接機

(44)
最もよいプロダクト
金属はステンレス鋼の金網シリンダー管の管フィルター溶接機を打ち抜いた

金属はステンレス鋼の金網シリンダー管の管フィルター溶接機を打ち抜いた

認証
中国 Shanghai Trintfar Intelligent Equipment Co., Ltd. 認証
中国 Shanghai Trintfar Intelligent Equipment Co., Ltd. 認証
顧客の検討
私のメールアドレスやWhatsAppにも連絡できます あなたの返事を楽しみにしています. セールス-ftt@trintfar.cn WhatsApp: +86 15216883036 上海 トリントファール インテリジェント機器株式会社

—— 親愛なる友よ

オンラインです

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process.

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process.
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process.
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process.

大画像 :  Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process.

商品の詳細:
起源の場所: 中国
ブランド名: Trintfar
証明: CE
お支払配送条件:
最小注文数量: 1
価格: 10000~80000
パッケージの詳細: 木製ブラケット/木製のケース
受渡し時間: 90〜120
支払条件: L/C、D/A、D/P、T/T
連絡先

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process.

説明
機械能力: 25s-40s/Pc 精密溶接: 一貫した結果のための二重溶接頭
頑丈 な 建築: 耐久性があり,生産の需要が高くなります 先進的な自動化: 全自動で,労働と時間を削減する
多様な互換性: 金属切断,彫刻,鍛造,磨き機械で作業する.

PRODUCT DESCRIPTIONS

Workflow


Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 0

Work flow:U plate & Top plate → Front plate & U plate (longer side) → Front plate & U plate (shorter side) → Wave guide & magnetron support → Wave guide assembly & U plate → Back plate & U palte (longe side) → Back plate & U palte (shorter side) → Motor Support & U plate

Main equipments


Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 1

U plate and top plate welding

Equipment model: 2xDR-20000J-2C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 2

U board and front board short side welding

Equipment model:2xDR-13000J-2C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 3
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 4
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 5

U board and front board long side welding

Equipment model:DR-20000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 6

Waveguide Box and Magnetron Welding

Equipment model:DR-30000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 7
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 8
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 9

Waveguide Assembly and U Plate Welding

Equipment model:DR-30000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 10

welding the long side of the back plate with the U plate

Equipment model:DR-20000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 11
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 12
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 13

short side of the back plate and U plate welding

Equipment model:DR-13000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 14

motor support welding

Equipment model: DR-13000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 15
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 16

Other informations



Product Details

Oven Production Line Layout Diagram

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 17

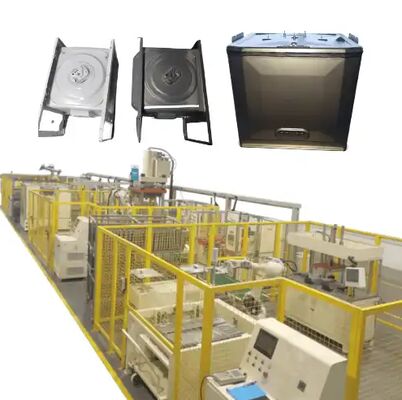

Production Results

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 18



Basic Structure of DR-20000J Capacitor Energy Storage Spot Welding Machine

Components:
Frame, Pressurizing Mechanism, Water Cooling System, Welding Circuit, Capacitor Power Supply, Control System, Body, Welding Cylinder, Electrodes, Cooling Circuit, Monitoring Device, and Safety Mechanism.

  1. Frame:
    • C-frame structure, high-quality steel, and section steel.
    • Precision machining and heat treatment for rigidity and accuracy.
  2. Pressurizing Mechanism:
    • Vertical pressure type with self-lubricating bearings for better performance.
    • Minimizes electrode impact, preventing damage and wear.
  3. Pneumatic System:
    • Includes Japanese “SMC” solenoid valves, Taiwanese air processors, and oil-free cylinders.
    • Gas storage tank stabilizes pressure.
  4. Discharge Transformer & Welding Circuit:
    • Uses Wugang silicon steel sheets, and precision copper casting.
    • Soft copper tape and electrodes in series.
  5. Main Control System:
    • Mitsubishi PLC and HMI.
    • Manual, automatic, and charging modes.
    • Adjustable parameters via touch screen (voltage, pressure time).
  6. Welding Controller:
    • Fast charging/discharging via microprocessor.
    • Compatible with old and new capacitors, it extends capacitor life.
    • Protection modes for fault prevention.
    • Automatic adjustment for capacitor voltage and leakage current.
    • Fault detection for overcharge, discharge, and capacitor errors.
    • Stores up to 5 welding specs, count 9999 welds, real-time voltage detection (error ≤ 1%).

Equipment Configuration List

No Station Name Model Quantity Unit
1 Motor bracket welding DR-13000J-1C 1 Set
2 U board and top board welding 2xDR-20000J-2C 1 Set
3 U board and front board short-side welding 2xDR-13000J-2C 1 Set
4 U board and the long side of the front board are welded DR-20000J-1C 1 Set
5 Waveguide box and magnetron welding DR-30000J-1C 1 Set
6 Waveguide assembly and U-board welding DR-30000J-1C 1 Set
7 The long side of the back plate is welded to the U plate DR-20000J-1C 1 Set
8 The short side of the back plate is welded to the U plate DR-13000J-1C 1 Set
