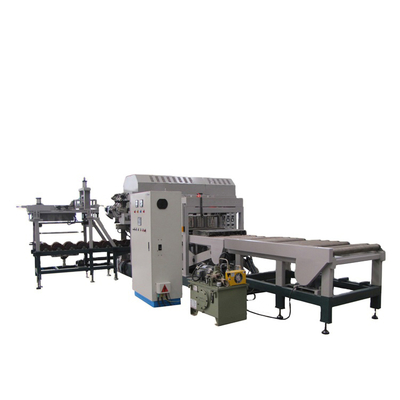

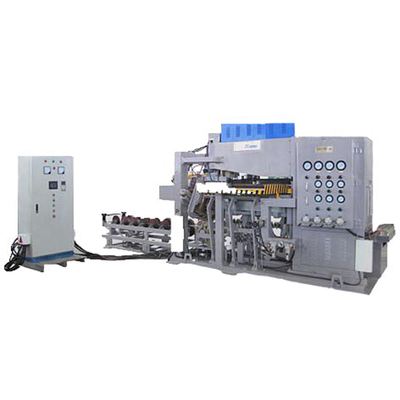

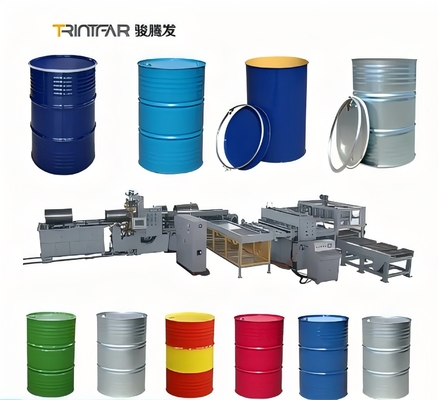

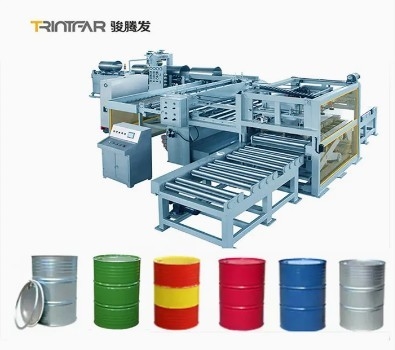

200L High-speed Fully Automatic Steel Drum Production Line

200L High-speed Fully Automatic Steel Drum Production Line
200L High-speed Fully Automatic Steel Drum Production Line
200L High-speed Fully Automatic Steel Drum Production Line 200L High-speed Fully Automatic Steel Drum Production Line 200L High-speed Fully Automatic Steel Drum Production Line 200L High-speed Fully Automatic Steel Drum Production Line 200L High-speed Fully Automatic Steel Drum Production Line 200L High-speed Fully Automatic Steel Drum Production Line 200L High-speed Fully Automatic Steel Drum Production Line

大画像 :  200L High-speed Fully Automatic Steel Drum Production Line

商品の詳細:
Place of Origin: China
ブランド名: Trintfar
証明: CE
お支払配送条件:
Minimum Order Quantity: 1
価格: 10000~80000
Packaging Details: Wooden brackets/wooden cases
Delivery Time: 90~120
Payment Terms: L/C, D/A, D/P, T/T
連絡先

200L High-speed Fully Automatic Steel Drum Production Line

説明
Application: Steel Drum Seam Welding Power(W): Adjustable
Welding Speed: 16m/Min Material Thickness Range: 0.8-1.5mm
Compressing Air Pressure: 0.6MPa Drum Length Range: 470-1100mm

Product Description


200L High-speed Fully Automatic Steel Drum Production Line 0
Product Description
200L High-speed Fully Automatic Steel Drum Production Line 1200L High-speed Fully Automatic Steel Drum Production Line 2Technical Solution.
1. 7 layers of circle rolling technology" (core tech of our company) has been adopted in Middle Equipment.
2. High-pressure painting without air, fuel heating has been adopted in Post Production Equipment.
Automatic production line, 11 workers are required only.
3. Complex Pressing technics have been adopted in Front Equipment, which saves 3~4% steel materials for each 55 Gallon steel drum.
200L High-speed Fully Automatic Steel Drum Production Line 3A. Cut the steel plate size: width 600-1320mm; thickness 0.6-1.4mm; B. Production capacity: cutting 15 time/minute; Max. Cutting speed 50-60m/minute; C. Total weight of the equipment: about 55 ton; D. Total power of the equipment: 48KW; E. Production level: cutting precision Length: tolerance 0.5mm; diagonal: tolerance 1mm
a. Coil cart: driven by 3 in 1 motor, hydraulic up and down;
b. Uncoil unite: no power turning, hydraulic driving, coil inner diameter Ф508-Ф610mm; Maximum load-bearing 15 tons;
c. 7 roller leveler machine: 7 rollers leveling, motor speed adjustable by change frequency;
d. Measurement facility: the length and precision is controlled by A.C. service motor made in Japan;
e. Transporter: rollers conveyer.
f. Cover Pressing Machine (160Ton press) : to forming the cover and bottom by 2-160 Ton punch press, the raw material is coiling steel plate, loading and unloading is Auto operating. Unit power is 15KW.
g. Double Locking Pressing Machine: to locking the small cover by 63Ton punch press.
h. Pre curling & spray sealing glue machine: Before seaming, the drum top and bottom need pre-curl, at same time must spray glue to ensure the seaming quality.
i. Cutter: 3×2000mm ;PLC control. producing PET plastic containers and bottles in all shapes.
200L High-speed Fully Automatic Steel Drum Production Line 4200L High-speed Fully Automatic Steel Drum Production Line 5
Support various color LOGO customization fast production efficiency and automated support make production very simple
item value
Condition New
Machine Type Welding Manipulator
Applicable Industries Manufacturing Plant, Construction works , Energy & Mining, Other
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location Egypt, Turkey, United Kingdom, United States, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Australia
Core Components PLC, Engine, Bearing, Gearbox, Pressure vessel, Gear
Speed 2~10pcs/min
200L High-speed Fully Automatic Steel Drum Production Line 6200L High-speed Fully Automatic Steel Drum Production Line 7200L High-speed Fully Automatic Steel Drum Production Line 8200L High-speed Fully Automatic Steel Drum Production Line 9200L High-speed Fully Automatic Steel Drum Production Line 10200L High-speed Fully Automatic Steel Drum Production Line 11Q Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.


Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
